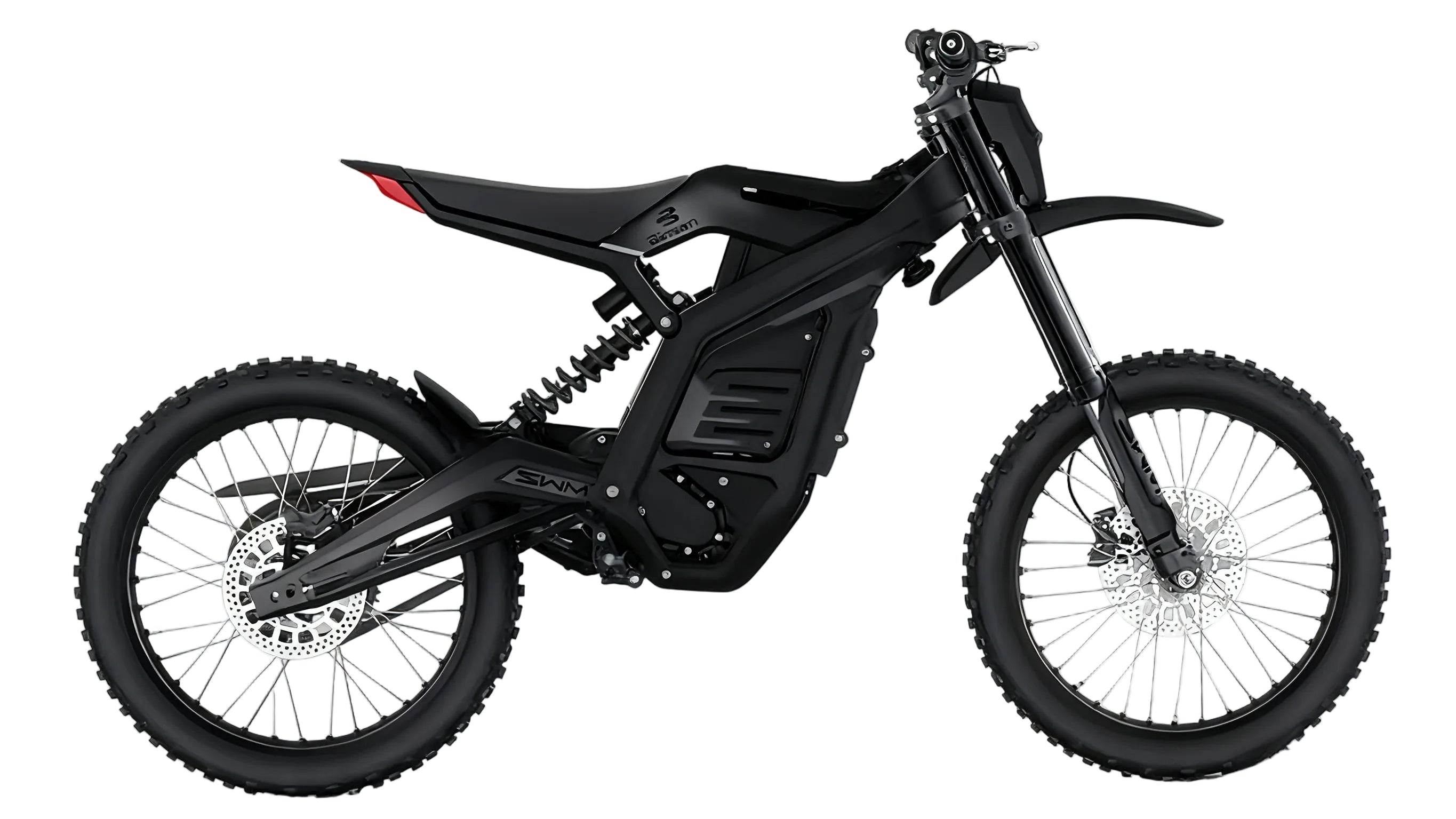

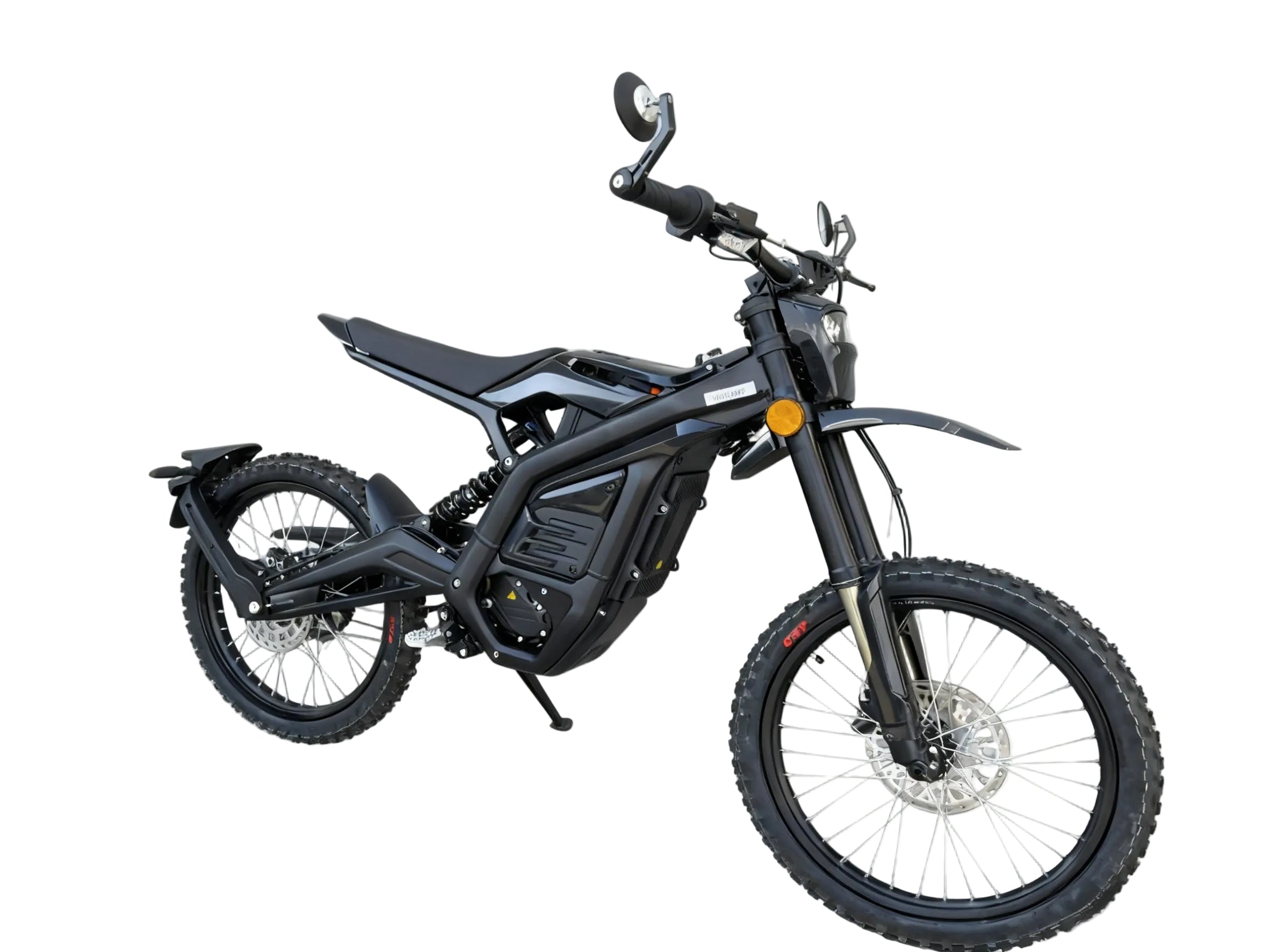

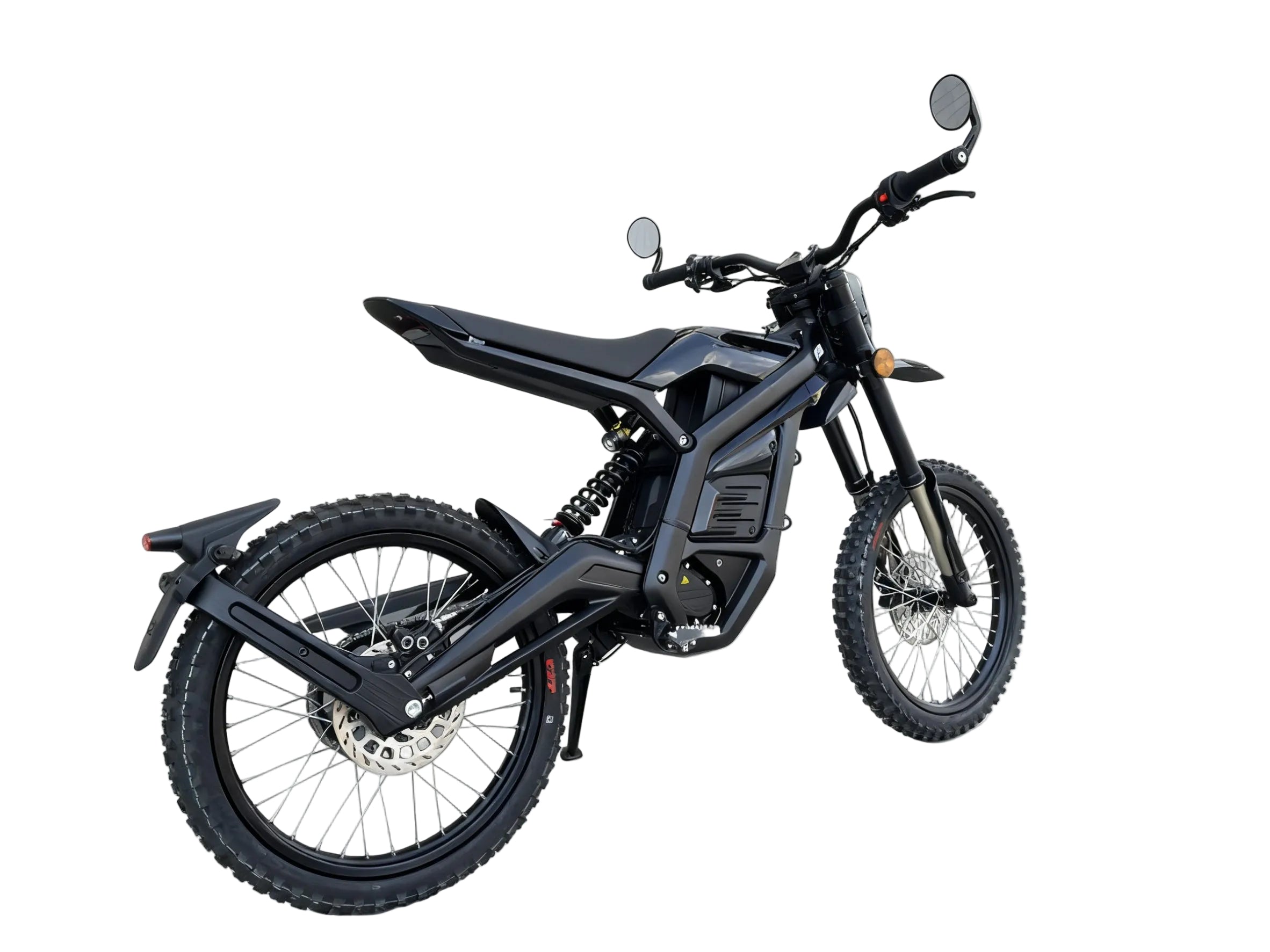

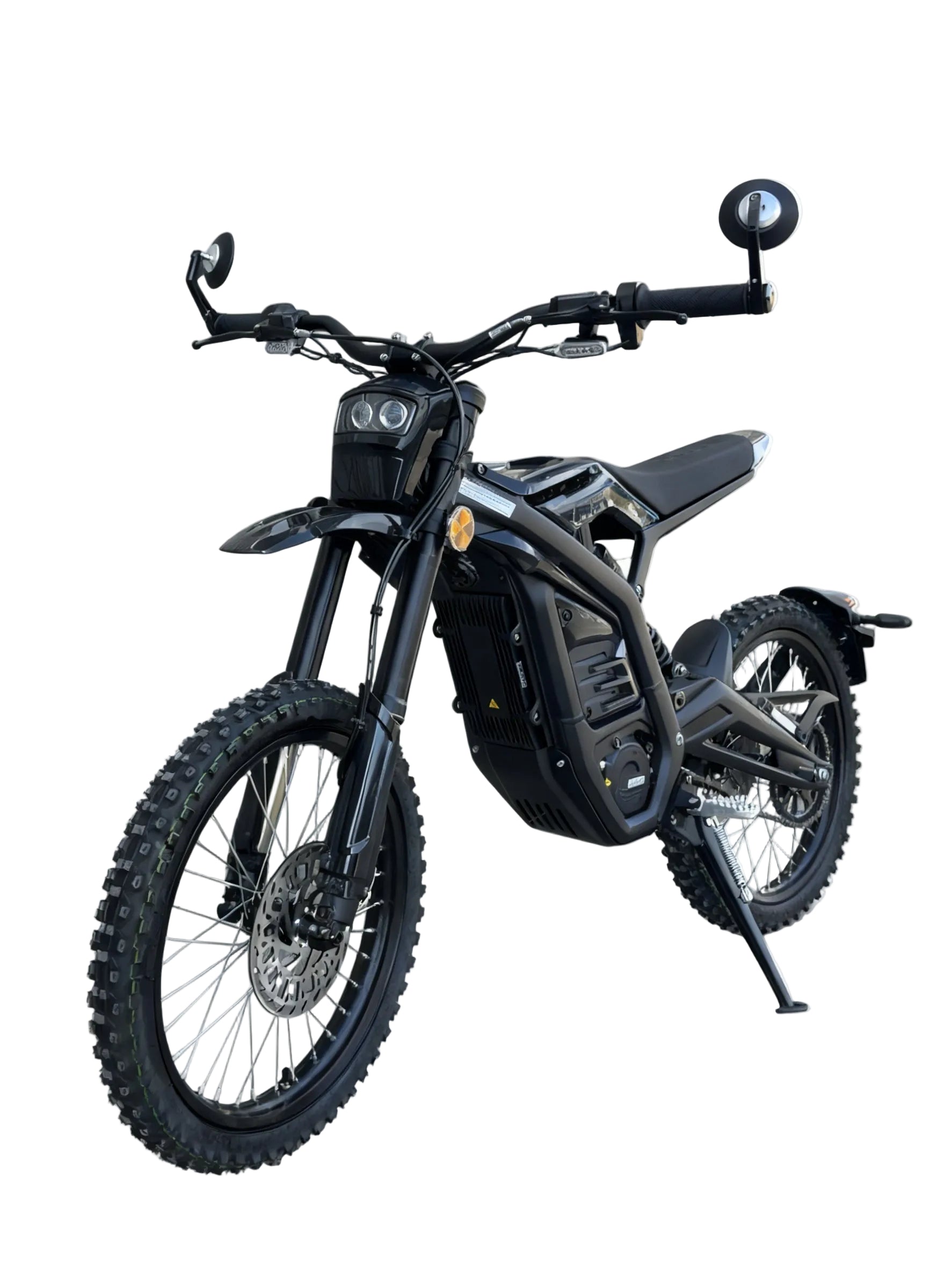

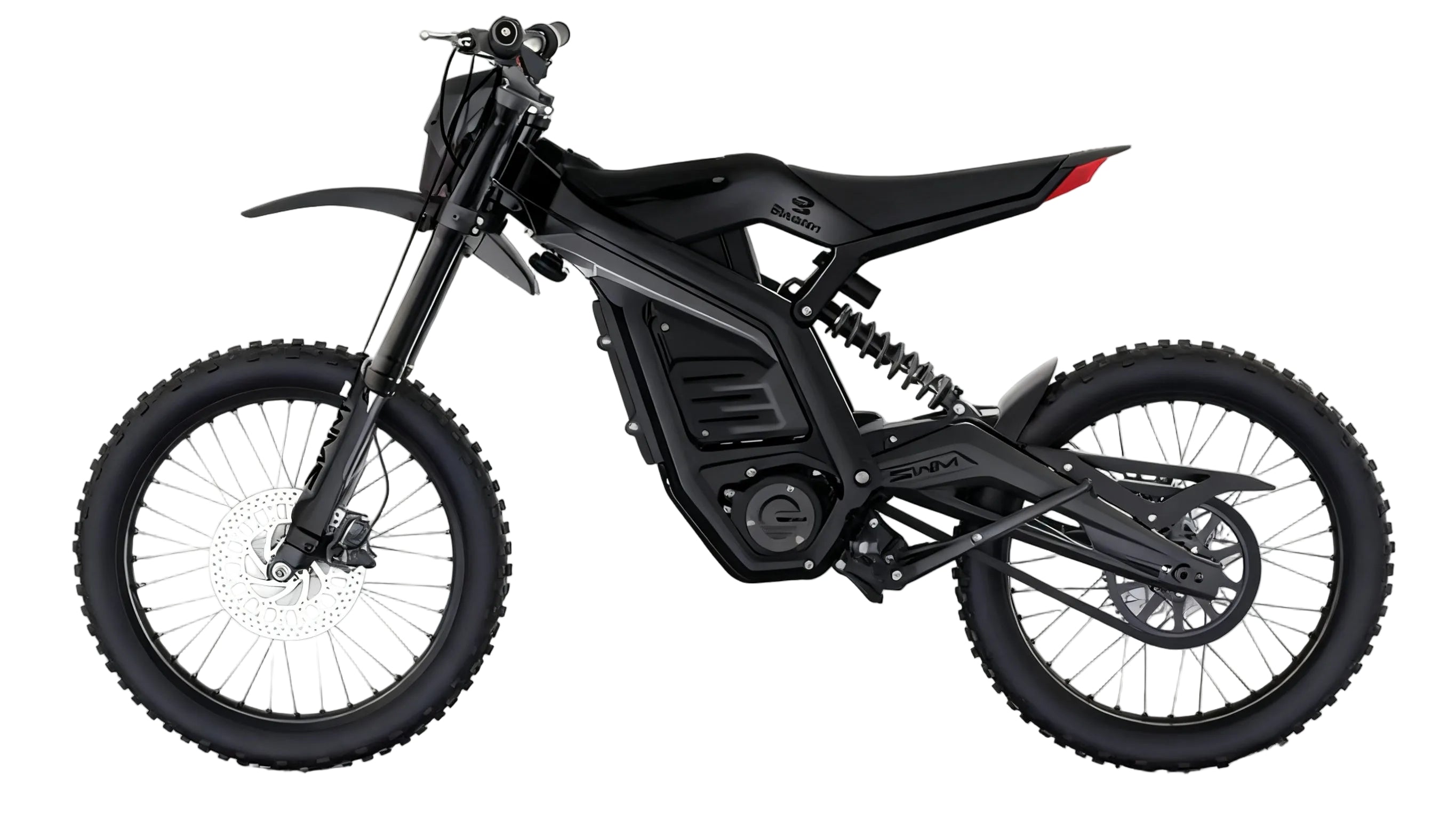

**Shineray Performance Electric Dirt Bike**

**Product Overview:**
Unleash pure electric power on any trail with the Shineray Performance Electric Dirt Bike. Engineered for riders who demand responsiveness, durability, and advanced technology, this bike combines a high-performance PMSM motor with a premium lithium battery and a competition-inspired chassis. From its fully adjustable KKE suspension to its potent dual disc brakes, every component is designed for superior control, impressive range, and exhilarating off-road adventures.

**Key Features & Performance:**
*   **Advanced PMSM Motor:** Air-cooled Permanent Magnet Synchronous Motor delivers instant torque, with a peak power of 6.5KW and a formidable peak torque of 33Nm for rapid acceleration and hill-climbing power.
*   **High-Efficiency Powertrain:** Features a regenerative Sine Wave / Vector Controller with Eco and Sport modes, maximizing range and performance. The 72V/30Ah Lithium Battery with premium Samsung 21700 cells offers a remarkable **70km range** (at 40km/h) and charges fully in just **2.5-3.5 hours**.
*   **Competition-Grade Chassis & Suspension:** The lightweight Forged Aluminum chassis and swingarm are paired with fully adjustable **KKE upside-down front forks (200mm travel)** and a **KKE monoshock rear suspension (230mm wheel travel)**, providing exceptional handling and bump absorption.
*   **Massive Braking Power:** Confident stopping is ensured by a large **220mm front disc** and **200mm rear disc**, both equipped with high-performance four-piston calipers.
*   **Premium Off-Road Components:** Fitted with knobby **70/100-19 CST tires** on lightweight Aluminum Alloy wheels for optimal grip and durability.
*   **Rider-Focused Design:** Features a comfortable **860mm seat height**, generous **270mm ground clearance**, and a fully **LED lighting system** (headlight, taillight, brake light). Includes a practical **Traction Control System (TCS)** that can be toggled On/Off.
*   **Certified & Ready:** Complies with **Euro5** standards (EEC/EPA/CARB). Available in a sleek Black color.

**Detailed Specifications:**

**Motor & Performance:**
*   **Motor Type:** PMSM, Air-cooled
*   **Rotation Speed:** 8000 RPM
*   **Peak Power:** 6.5KW
*   **Rated Power:** 3.5KW
*   **Peak Torque:** 33Nm
*   **Rated Torque:** 11Nm
*   **Rear Wheel Torque:** 350Nm
*   **Max. Speed:** 43 Km/h
*   **Range:** 70Km @ 40Km/h (terrain dependent)

**Controller & Power System:**
*   **Controller Type:** Regenerative Sine Wave / Vector Controller

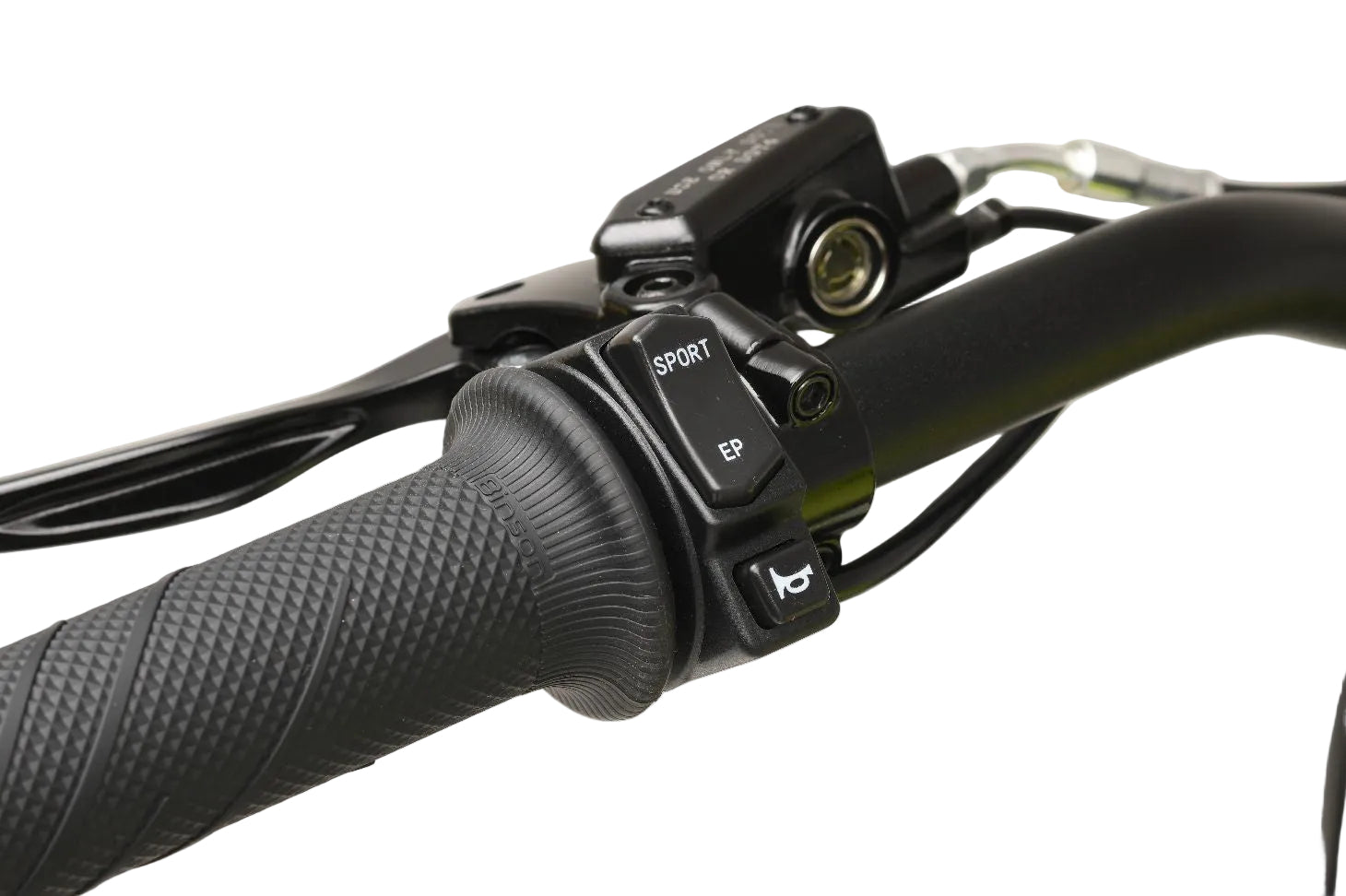

*   **Power Modes:** Eco, Sport
*   **Battery Pack:** Lithium Battery with Samsung 21700 Cells
*   **Capacity:** 72V / 30Ah
*   **Charge Time:** 2.5 - 3.5 hours

**Transmission:**
*   **Gear Ratio:** 1:11
*   **Transmission:** Primary gear & drive chain

**Chassis/Suspension/Brakes:**
*   **Chassis & Swingarm:** Forged Aluminum

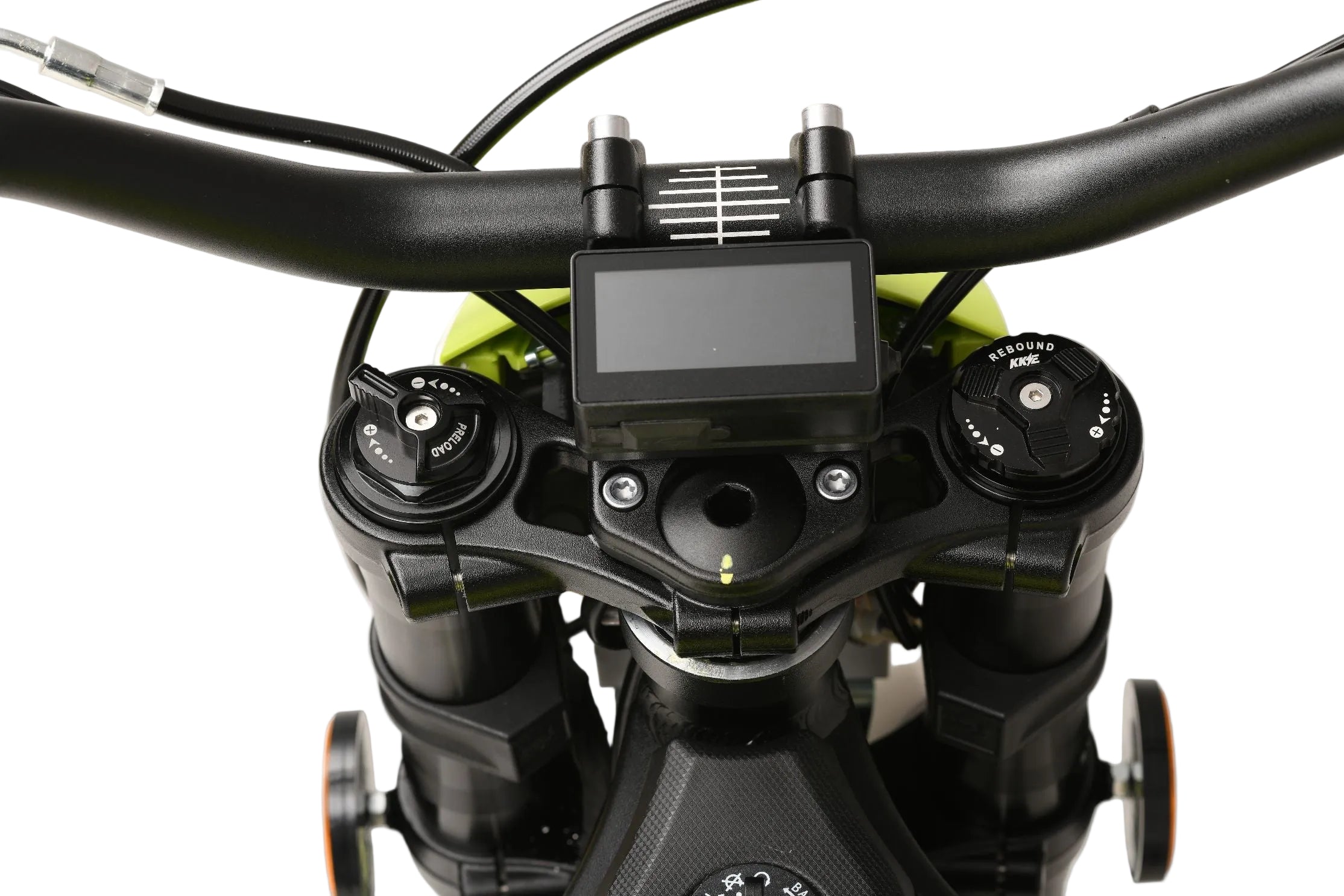

*   **Front Suspension:** KKE USD Fork, adjustable preload & rebound | **Travel:** 200mm
*   **Rear Suspension:** KKE Monoshock, adjustable compression & rebound | **Wheel Travel:** 230mm
*   **Front Brake:** 220mm disc, 4-piston caliper

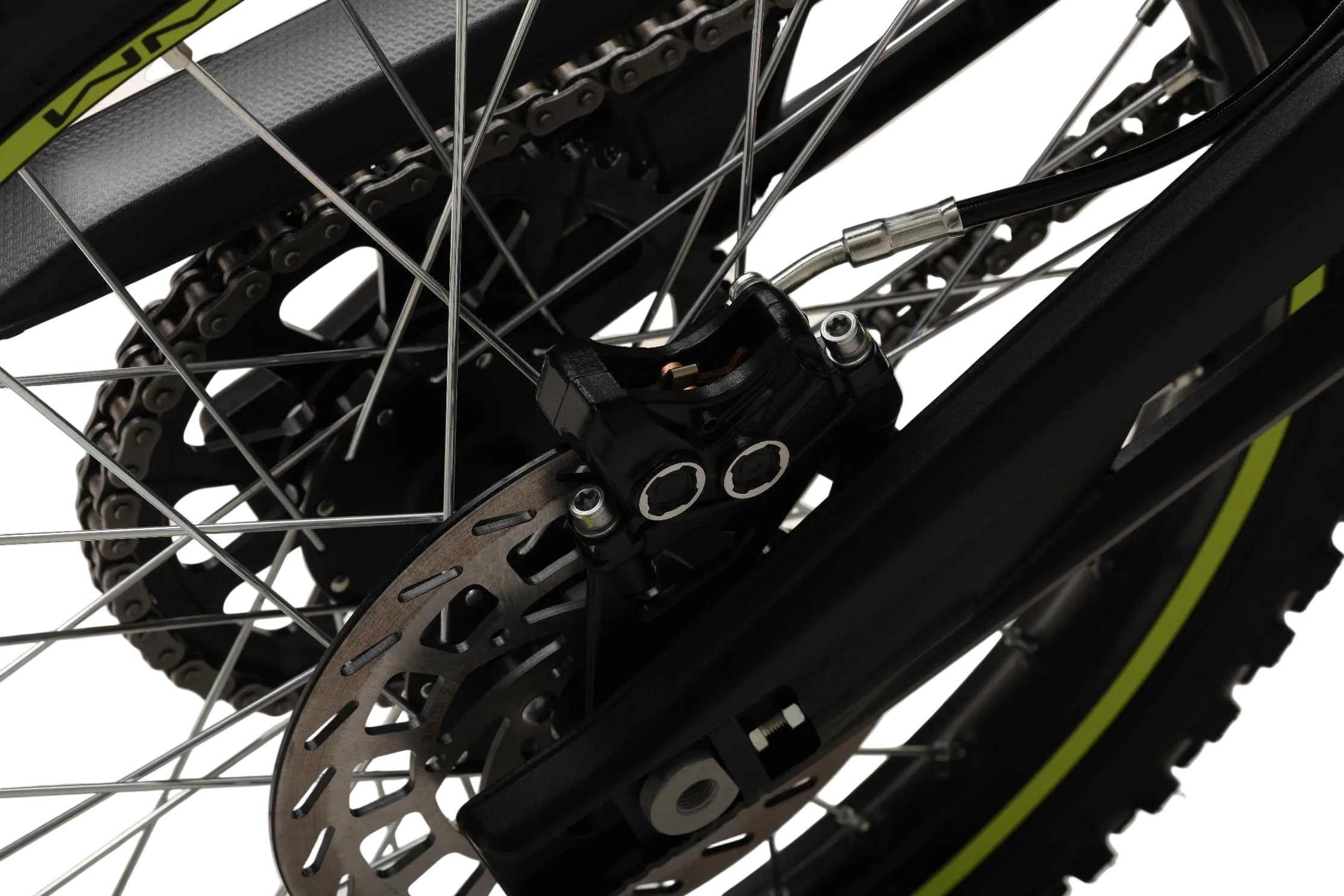

*   **Rear Brake:** 200mm disc, 4-piston caliper
*   **Front/Rear Tire:** 70/100-19 CST
*   **Front/Rear Wheel:** Aluminum Alloy

**Vehicle Parameters:**
*   **Dimensions (LxWxH):** 1905 × 845 × 1090 mm
*   **Wheelbase:** 1255 mm
*   **Seat Height:** 860 mm
*   **Ground Clearance:** 270 mm
*   **Curb Weight:** 65.4 kg
*   **Max. Recommended Load:** 100 kg
*   **Lights:** Full LED (Headlight/Taillight/Brake light)
*   **TCS:** Traction Control System (On/Off)

**Packing & Shipping:**
*   **Packing Size:** Variant-specific (A: 1955×465×1070mm; B: 1670×370×740mm; C: 1650×325×870mm)

**Note:**
Specifications are subject to improvement. Please confirm final details with your supplier before ordering. Professional assembly and setup are recommended for optimal performance and safety.
